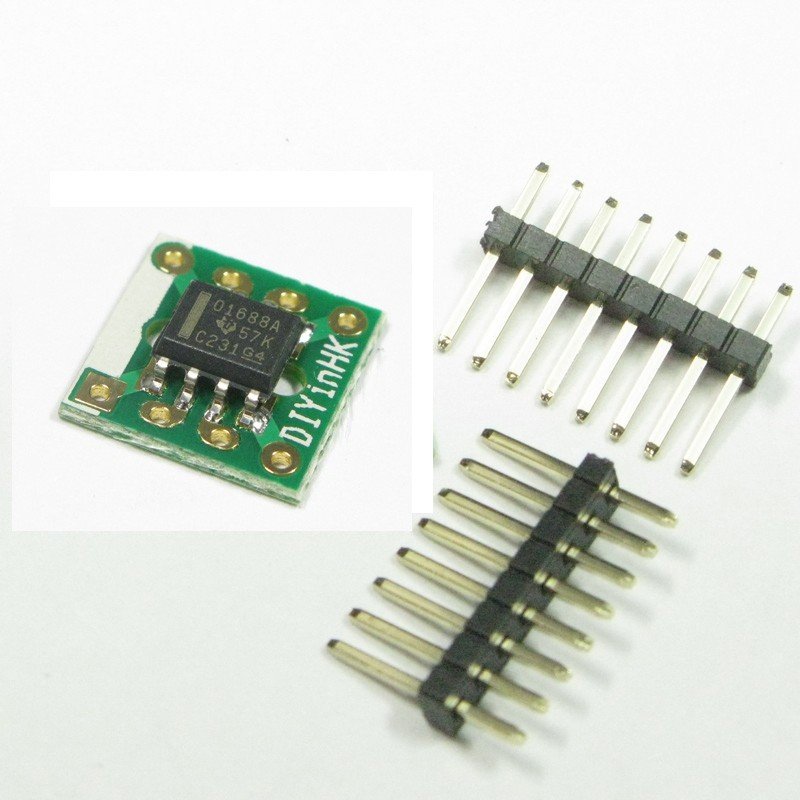

4pcs OPA1688 DIP Version Ultra High Quality Audio Operational Amplifier

$9.95

No tax

4 pieces OPA1688
SMT component are soldered, thru-hole component are not soldered

Quantity

In Stock

Description
Product Details

Description

The OPA1688 are a family of Wide Supply Range: SoundPlus 36-V, single-supply, low-noise operational amplifiers capable of operating on supplies ranging from 4.5 V (±2.25 V) to 36 V (±18 V). This latest addition of high-voltage audio operational amplifiers, in conjunction with the OPA16xx devices provide a family of bandwidth, noise, and power options to meet the needs of a wide variety of applications. The OPA168x are available in per Amplifier micropackages, and offer low offset, drift, and quiescent current. These devices also offer wide bandwidth, fast slew rate, and high output current drive capability. The dual and quad versions all have identical specifications for maximum design flexibility. Unlike most op amps that are specified at only one supply voltage, the OPA168x family is specified from 4.5 V to 36 V. Input signals beyond the supply rails do not cause phase reversal. The input can operate 100 mV below the negative rail and within 2 V of the top rail during normal operation. Note that these devices can operate with full rail-to-rail input 100 mV beyond the top rail, but with reduced performance within 2 V of the top rail.

Features

Applications
Headphone Driver
Analog and Digital Mixers
Audio Effects Processors
Transducer Amplifiers
Musical Instruments
A/V Receivers
DVD and Blu-Ray. Players
Car Audio Systems

Key Specifications

‧ THD+N, 50 mW, 32 Ω, 1 kHz, –109 dB
‧ Wide Supply Range: – 4.5 V to 36 V, ±2.25 V to ±18 V
‧ Low Offset Voltage: ±0.25 mV
‧ Low Offset Drift: ±0.5 μV/°C
‧ Gain Bandwidth: 10 MHz
‧ Low Input Bias Current: ±10 pA
‧ Low Quiescent Current: 1.6 mA
‧ Low Noise: 8 nV/√Hz
‧ EMI- and RFI-Filtered Inputs
‧ Input Range Includes Negative Supply
‧ Input Range Operates to Positive Supply
‧ Rail-to-Rail Output
‧ High Common-Mode Rejection: 120 dB

Assembly Tips:

1. Push and remove the 1.27mm spacing 8 pin to become 2.54mm spacing 4 pin.

2. The shorter side of the header pin is soldering to the PCB.

3. Uses bread board and IC socket to fix the parts for soldering easily.

Important notes: Test each point to avoid short circuit before plug in the main circuit.

Data sheet
